TGM2800F bi-directional amplifier

TGM2800F bi-directional amplifier can be used in CATV network, digital network and telecom network with high gain, low distortion and excellent flatness.Front end adopts high-quality,low-noise ...

Current position：HOME > HFC

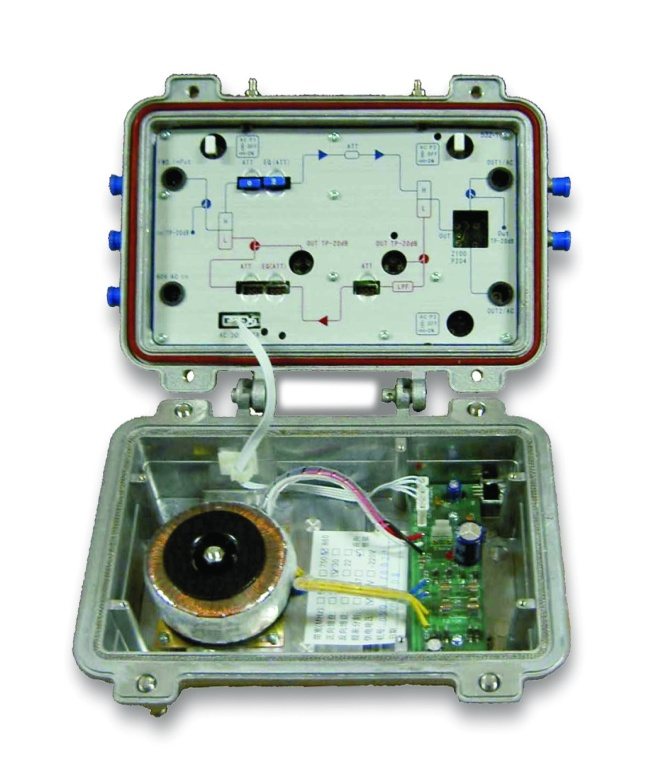

TGM2800F bi-directional amplifier

Overview    TGM2800F bi-directional amplifier can be used in CATV network, digital network and telecom network with high gain, low distortion and excellent flatness.Front end adopts high-quality,low-noise and high-linear GaAs chip amplifier. the output adopts imported special CATV power multiplier amplification module. It can be used as a amplifier or a distribution amplifier in bidirectional CATV system and it can also be used as bridging amplifier in the EOC system. Output port branch or distribution are optional. Features         ● Input stage adopt special CATV high-quality GaAs integrated amplifier,reducing the noise figure
        ● Output stage adopt imported special CATV multiplier power amplifier module, greatly improved nonlinear distortion characteritics， RF output level up to 108dBuV
        ● Bi-directional split frequency 42/54MHz or 65/87MHz optional
        ● Forward output, reverse input share a common external RF test point, easy for forward and reverse channel debugging
        ● RF output port level, slope fixed adjustable
        ● Balanced alternative technology, adopt attenuation plug-in table to do balanced adjustment
        ● Perfect multi-stage surge suppression circuitry,improved anti-lightning strike and anti-surge shocks,further improved the reliability
        ● Optimized bi-directional configuration design to ensure an excellent price pertableance ratio Technical Specifications

NO.	Item	Unit	Parameter
NO.	Item	Unit	Forward Channel	Backward Channel
1	RF bandwidth	MHz	87（54）～1G	5～65(42)
2	RF Bandwidth	dB	≥16（87～550MHz） ≥14（550～862MHz）	≥16（5～65MHz）
	Input/Output Return Loss	dBμV	≥106 （single output port） ≥102（dual output port）	≥104
3	RF Output Signal Level	dB	±0.75	±0.75
4	Flatness	dB	≥34（single output port) ≥30（dual output port）	20
5	Nominal Gain	dB	≥ 30（38 MAX we can do）	20
6	Gain adjust range	dB	0～20	0～20
7	Slope Adjustment Range	dB	0～15	0～15
8	NF	dB	≤5.0	≤8.0
9	HUM	dBc	≥66	≥60
10	CTB	dBc	≥71	/
11	CSO	dBc	≥68	/
12	Group Delay	ns	≤5.0(112.25MHz/116.68MHz)	≤20.0(57MHz/59MHz)
	NPR	dB		≥40@dynamic range≥45dB
13	Dimension (W×H×L)	mm	275×205×110
14	Power consumption	W	25
15	Voltage(two options)	V	AC 60V 50Hz or AC 220V 50Hz
16	Working temp	℃	-25～+65
17	Storage temp	℃	-40～+80
18	Weight	kg	4
